Engine · v4.0.0

Trails

Tapered light trails with white-hot heads and cooling tails, in three depth planes.

Open in Classic Open in Studio

All engines

6 modes

Launch modes

Comet Shower

A great comet whose tail fans out across the spectrum, over a three-layer meteor shower.

Classic Studio

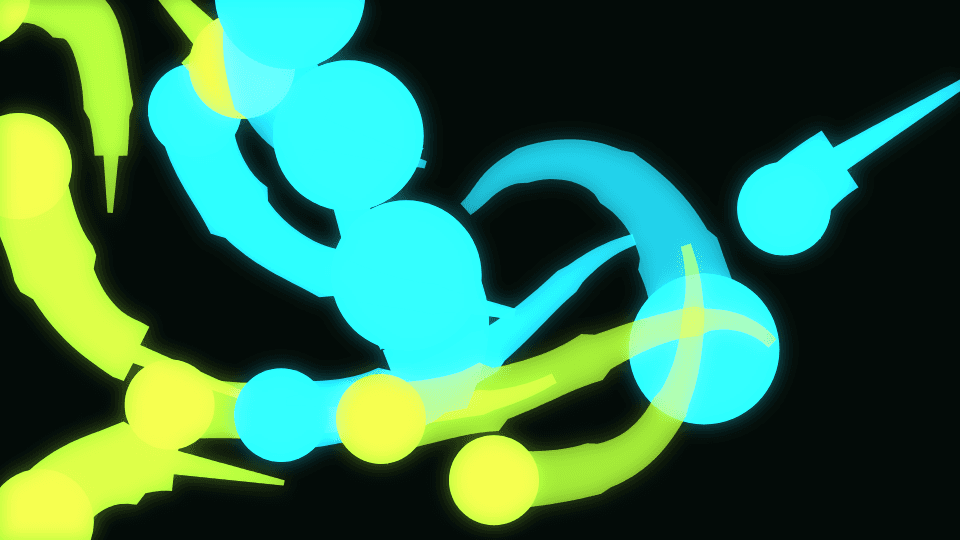

Ribbon Flow

Wide silk ribbons of light swirling around the centre along a smooth flow.

Classic Studio

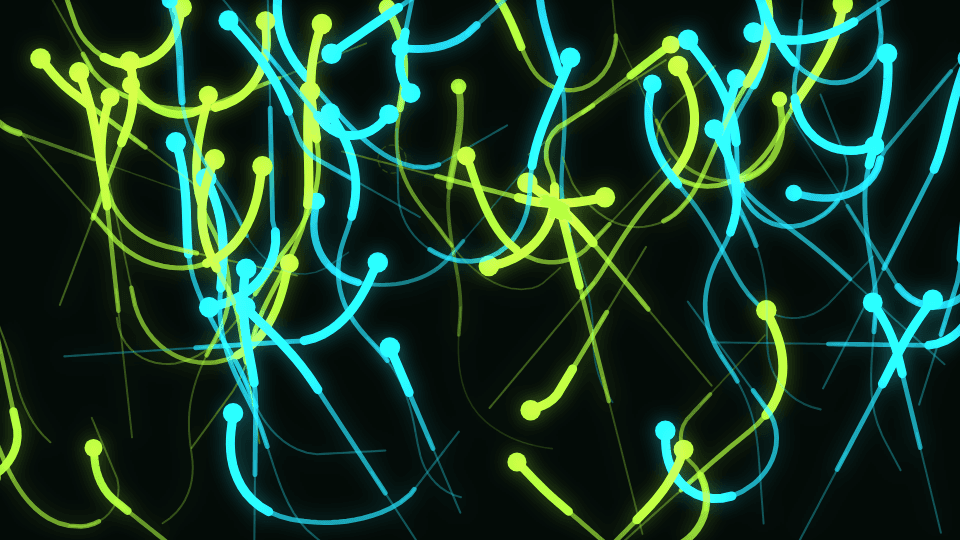

Snake/Braid

Braided light strands slithering in a figure eight; the lead braid twists on every kick.

Classic Studio

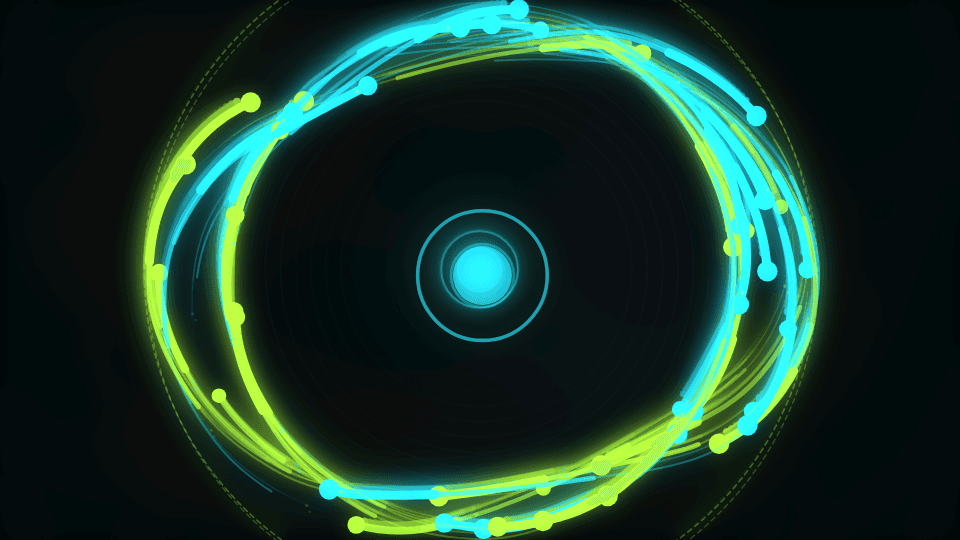

Orbit Trace

Lights on tilted orbits around your cover art, passing behind it and in front.

Classic Studio

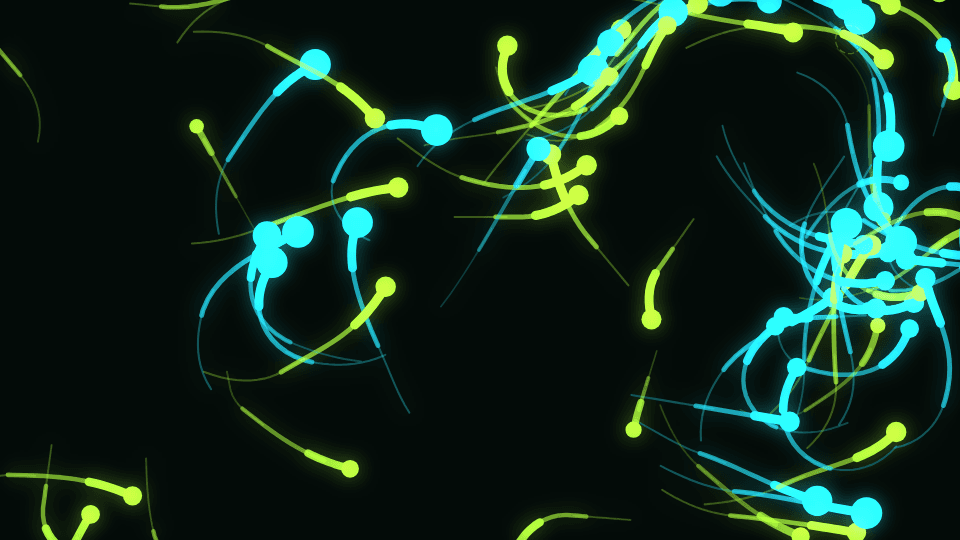

Flow Field

Dense streaks reveal a curl field turning around a central vortex that re-forms each section.

Classic Studio

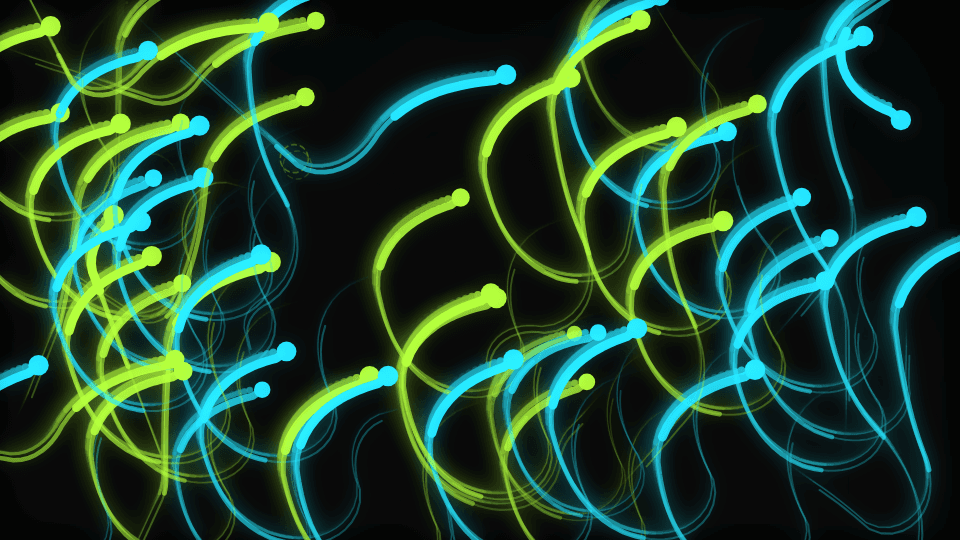

Echo Streaks

A band of streaks with stroboscopic after-images that turns to a new heading each phrase.

Classic Studio

50 controls

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#a3e635	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#22d3ee	Yes	No
BackgroundBackground used by the engine palette	Style	color	#030806	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Frequency focusWhich part of the spectrum drives this visual; while no explicit audio source is set, the motion envelope follows this selection	Audio	select	full	No	No
Burst intensityGlow and trail swell on sharp hits; 0 keeps bursts off	Audio	range	0	Yes	No
Ambient bedProminence of the standing background layer behind the beat-born elements	Effects	range	1	Yes	No
Wake lengthHow far motion trails stretch behind beat-born travelers; 0 removes the wake	Effects	range	1	Yes	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
GeometryGeometry	Geometry	select	circle	No	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
Direction XNormalized horizontal motion direction	Motion	range	0	Yes	No
Direction YNormalized vertical motion direction	Motion	range	-0.15	Yes	No
Motion directionRotate the animated visual pass to face this direction; the general background stays fixed	Motion	select	none	No	No
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
TurbulenceTurbulence	Motion	range	0.15	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Symmetry and tilingReshape the whole picture: mirror it, fold it into a kaleidoscope, or tile it (the plane groups p1, p2, p4m and p6m)	Shape and symmetry	select	none	No	No
Kaleidoscope foldsHow many mirrored copies go round the kaleidoscope	Shape and symmetry	range	6	Yes	No
Symmetry angleTurns the mirror line, or the kaleidoscope, in degrees	Shape and symmetry	range	0	Yes	Yes
Kaleidoscope spinHow fast the kaleidoscope turns, in turns per bar of the song (0.25 is once a phrase)	Shape and symmetry	range	0	Yes	Yes
Tile sizeEach tile's size as a share of the frame	Shape and symmetry	range	0.5	Yes	No
Tile gapThe gap between tiles, as a share of a tile; it shows the background colour	Shape and symmetry	range	0	Yes	No
WarpBend the whole picture: a twist, a bulge, waves or ripples that move once a bar, a polar unroll, or a fisheye lens	Shape and symmetry	select	none	No	No
Warp amountHow strong the warp is	Shape and symmetry	range	0.5	Yes	Yes
Warp centreWhere the warp is centred in the frame	Shape and symmetry	select	centre	No	No
Trail countSaved quality-independent trail target	Trails	range	44	Yes	No
Trail lengthTrail length	Trails	range	1.8	Yes	Yes
Trail decayTrail decay	Trails	range	0.9	Yes	Yes
Braid strandsParallel braided strands	Trails	range	3	Yes	No
Flow fieldFlow field	Trails	select	curl	No	No
VersionPlay an earlier version of this visualizer. Current look follows every future update.	Version	select	current	No	No
