Engine · v4.0.0

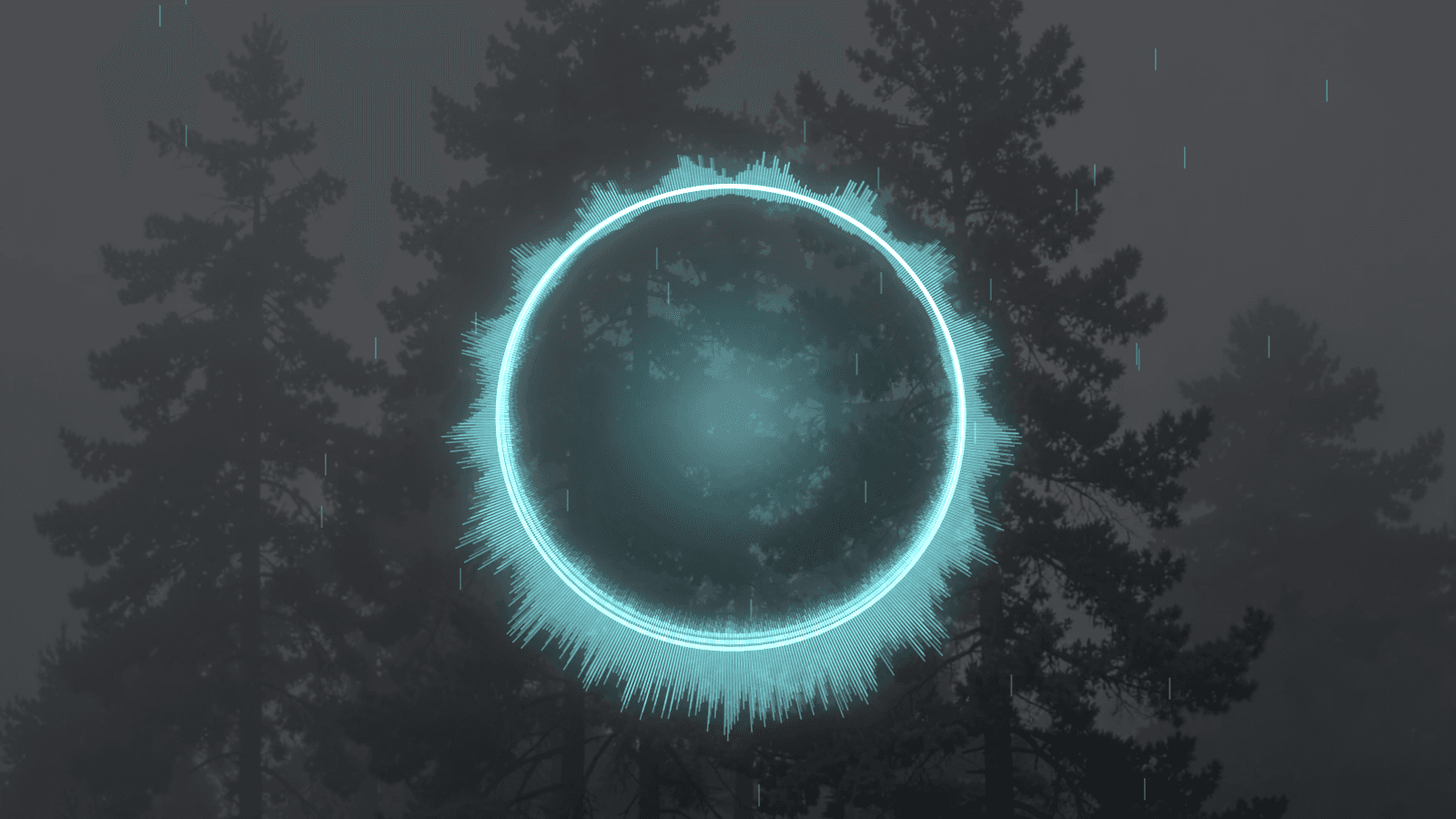

Release Ring

A ring of glowing strands the music throws outward, drawn as a tube that tilts away in the quiet and turns to face you on the drop, beside your title, over a scene that changes with the song: misty landscapes, a halftone burst, a stream of data, flowing contours.

Open in Classic Open in Studio

All engines

6 modes

Launch modes

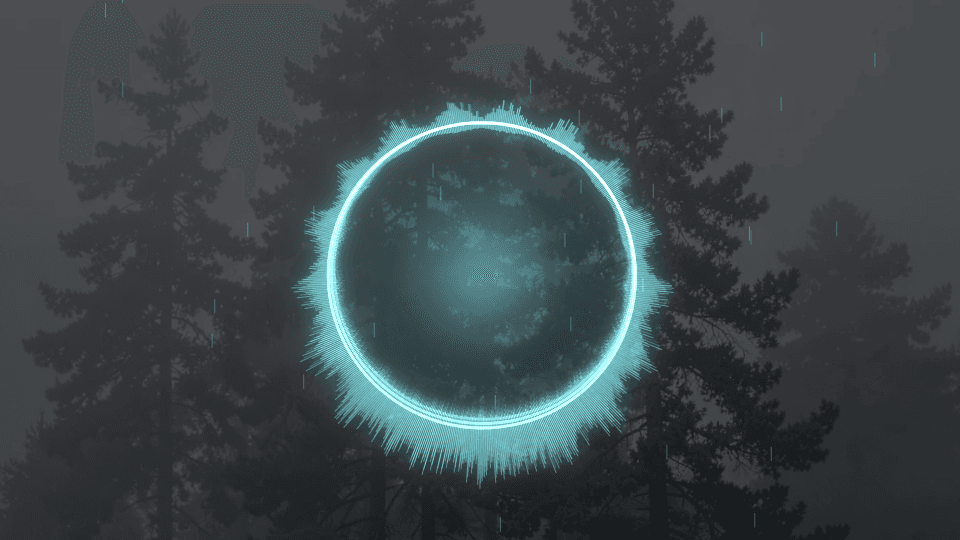

Release Story

The whole release: misty photos in the verses, a halftone burst on the build, a stream of data on the drop and flowing contours in the breakdown, with the ring tilting away in the calm and facing you on the drop.

Classic Studio

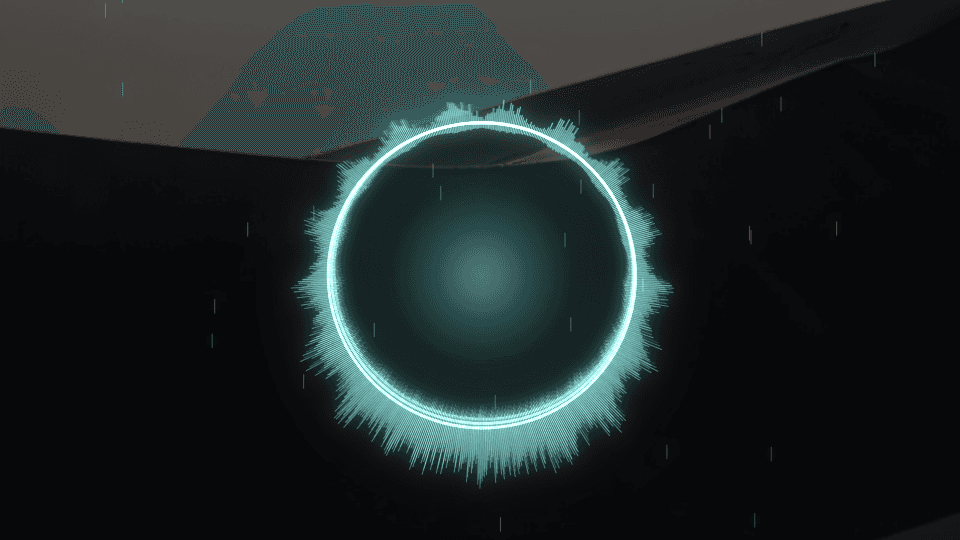

Photo Plate

The ring over a dim, slowly drifting landscape that changes each section, your title beside it.

Classic Studio

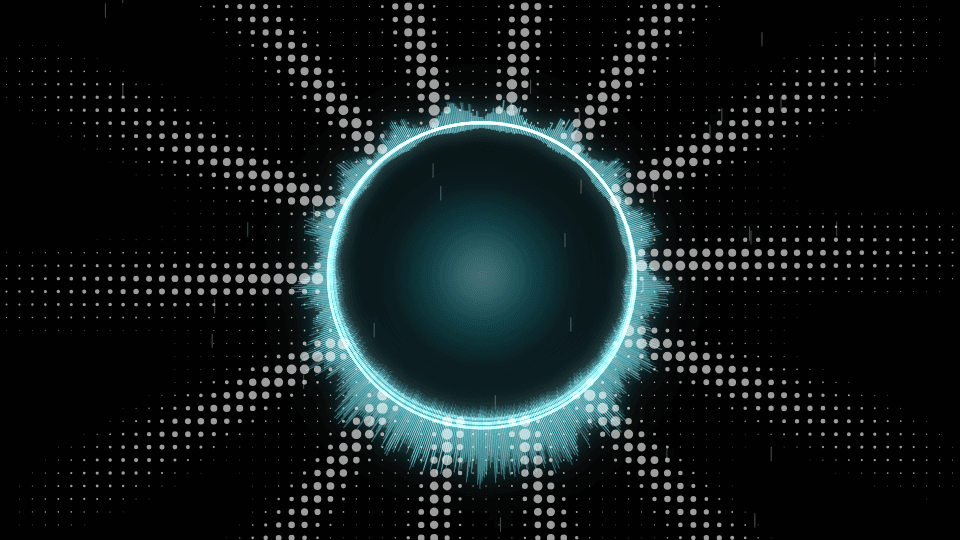

Halftone Burst

Black, with a starburst of halftone dots behind the ring whose rays swell on every kick.

Classic Studio

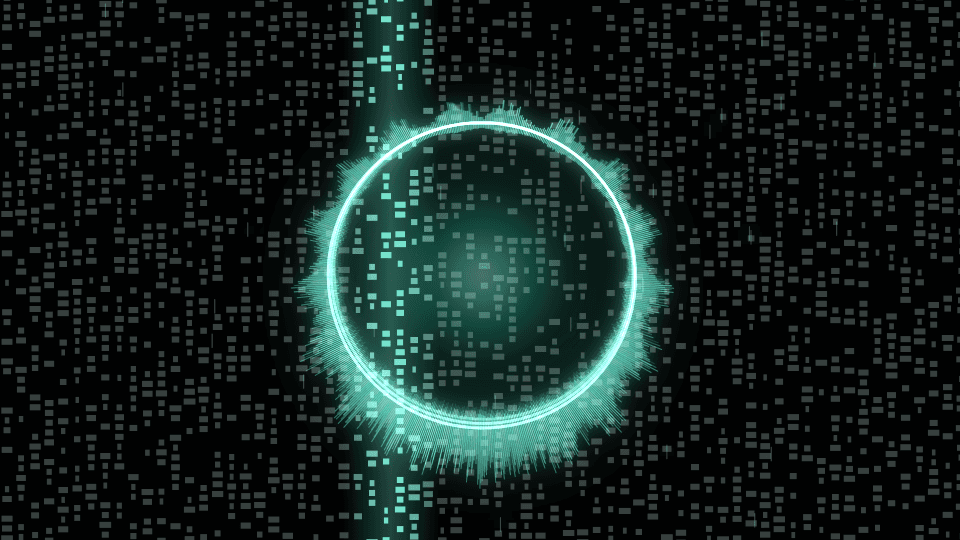

Data Stream

Columns of data scrolling at their own speeds, with a bright band sweeping across that flares on the hits.

Classic Studio

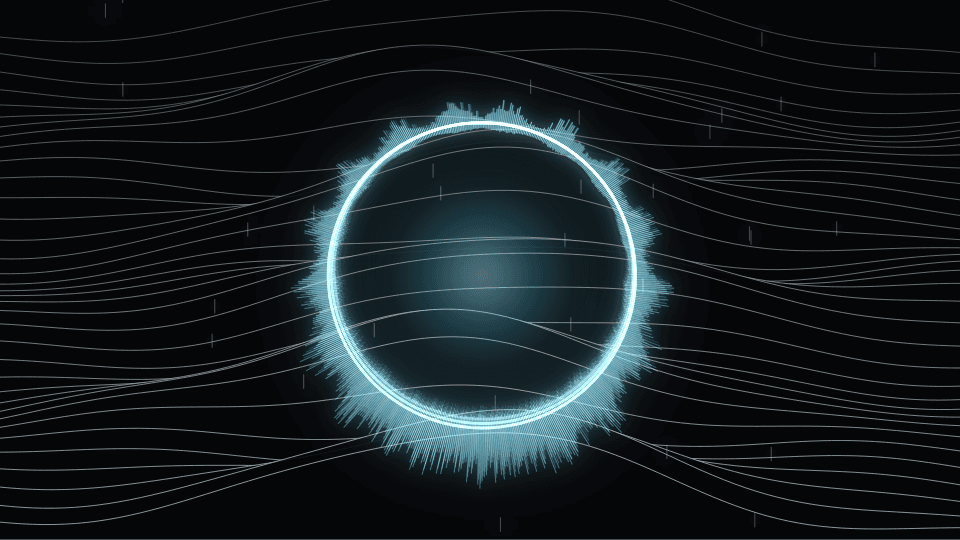

Contour Flow

Flowing contour lines, like a moving map, that the bass lifts into ridges around the ring.

Classic Studio

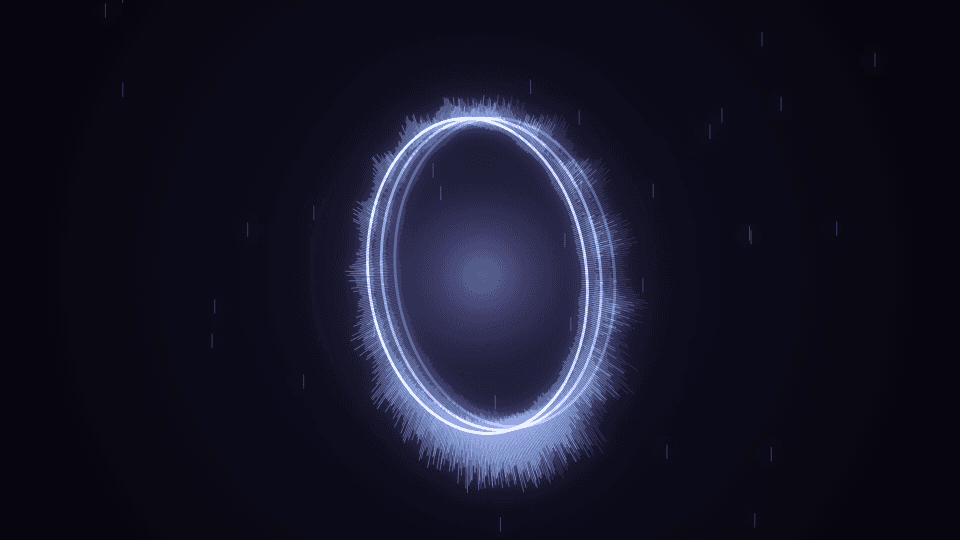

Orbit Tube

The ring alone and centred, a deep tube turning slowly in space with its inner rings showing as it tilts.

Classic Studio

40 controls

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#3ff0ff	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#a8fbff	Yes	No
BackgroundBackground used by the engine palette	Style	color	#05080c	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeHow much of the 40 Hz to 14 kHz range the visual spans, from the bass up. Lower it to give the bass and mids more of the bars	Audio	range	1	Yes	No
Frequency scaleHow the bars are spread across the frequencies. Log spreads them by octave, mel by how pitch is heard, and linear by hertz, which gives most bars to the highs	Audio	select	log	No	No
Auto-levelLifts every part of the spectrum to its own recent range, so quiet highs move as much as loud bass. A note held for several seconds settles lower as it adapts. 0 shows the raw spectrum	Audio	range	0.8	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Frequency focusWhich part of the spectrum drives this visual; while no explicit audio source is set, the motion envelope follows this selection	Audio	select	full	No	No
Burst intensityGlow and trail swell on sharp hits; 0 keeps bursts off	Audio	range	0	Yes	No
Ambient bedProminence of the standing background layer behind the beat-born elements	Effects	range	1	Yes	No
Wake lengthHow far motion trails stretch behind beat-born travelers; 0 removes the wake	Effects	range	1	Yes	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Ring sizeHow big the ring is	Ring	range	1	Yes	No
TiltHow far the ring tilts away in the quiet parts; it turns to face you as the song builds	Ring	range	0.6	Yes	No
Tube depthHow deep the ring's tube is: the rings you see inside it as it tilts	Ring	range	0.45	Yes	No
FuzzHow far the music throws the strands out from the ring	Ring	range	1	Yes	Yes
StrandsHow many strands make the ring	Ring	range	1	Yes	No
Ring positionWhere the ring sits in a wide frame; your title takes the other side. Auto puts it on the right	Ring	select	auto	No	No
Background dimHow far the photo behind the ring is dimmed	Scene	range	0.55	Yes	No
Title and artistShow or hide the song title and artist this visualizer draws.	Text	select	auto	No	No
