Engine · v5.6.0

Constellations

Every constellation in the sky and the star patterns people know by name, from real star charts, made to move with your song: a night sky where the figure draws itself a line on every beat, its lines of light in a nebula, a planetarium dome, a telescope eyepiece hopping from star to star, a printed star chart and a card for your star sign.

Open in Classic Open in Studio

All engines

6 modes

Launch modes

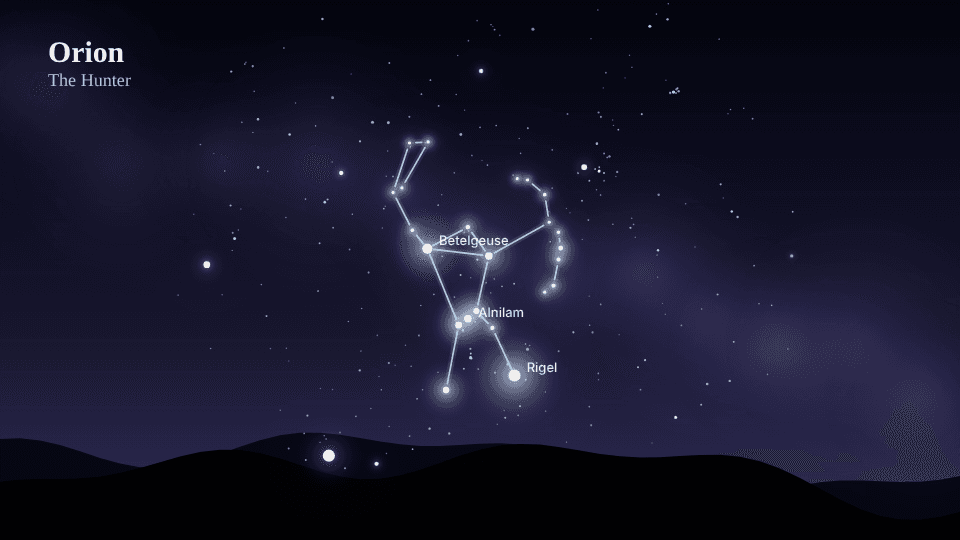

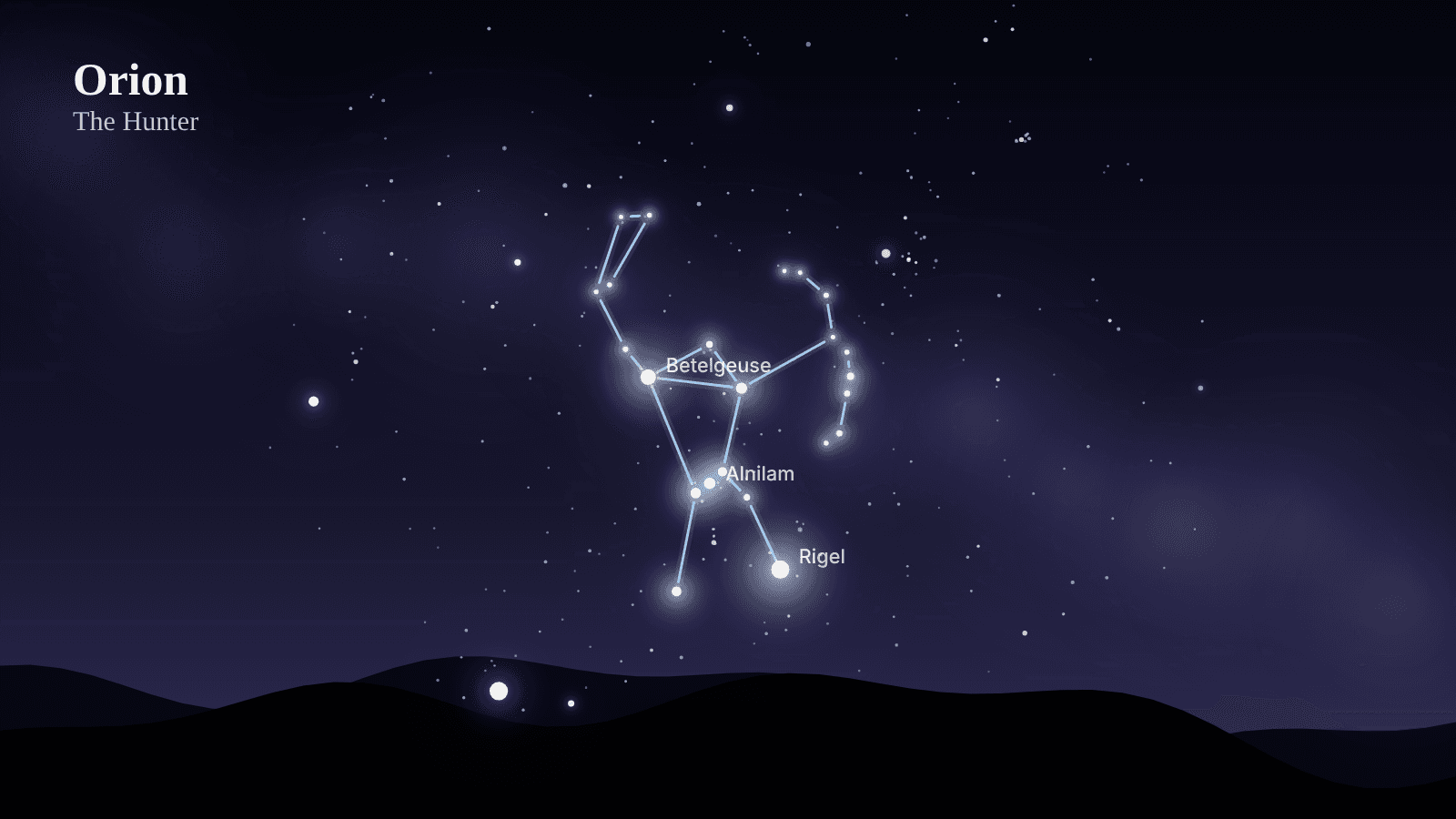

Night Sky

The constellation in a clear night sky over the hills: its lines draw themselves one on every beat, its real stars twinkle with the part of the song their colour answers, the Milky Way glows and a shooting star crosses on the big moments.

Classic Studio

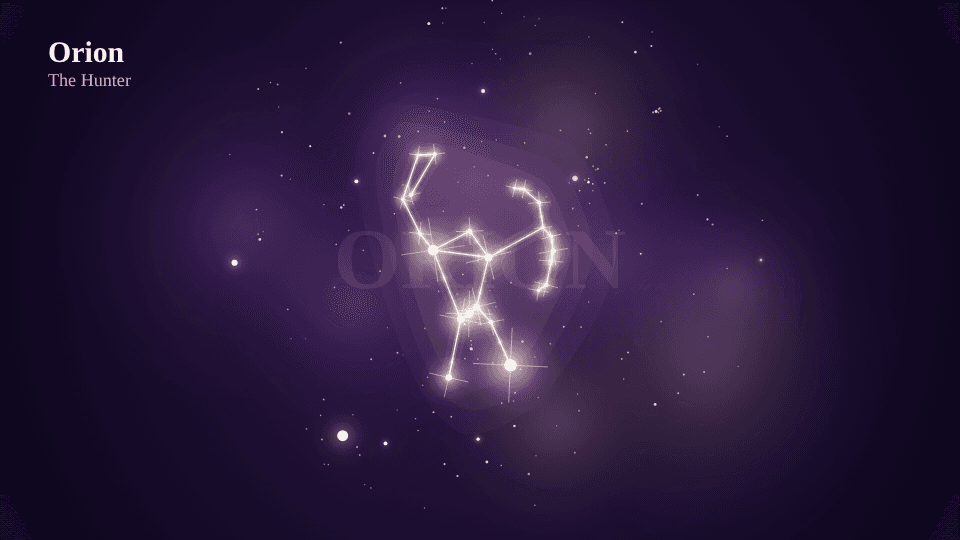

Star Lore

The figure drawn in lines of light inside a glowing nebula, the way the old star atlases drew their heroes and beasts: comets run along its lines on the beat and its aura breathes with the bass.

Classic Studio

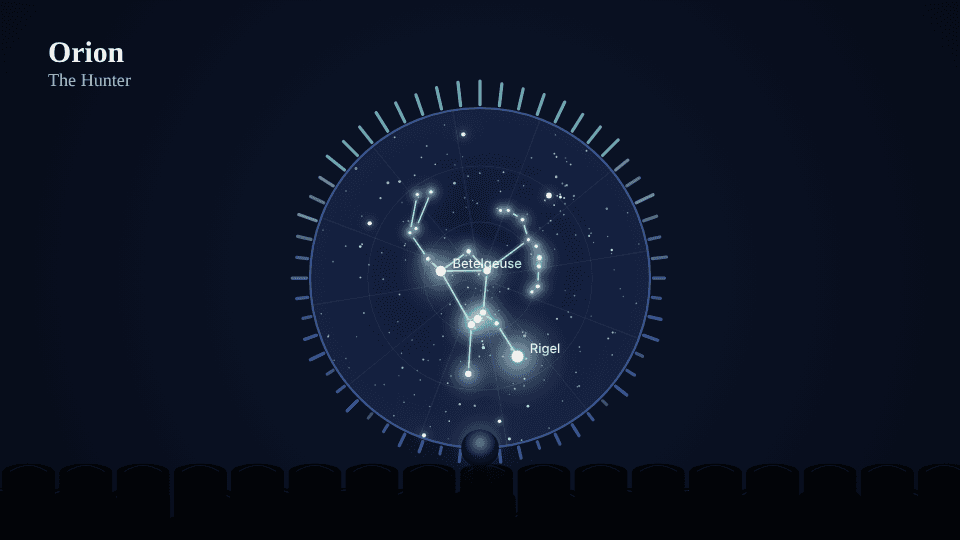

Planetarium Dome

The sky on a planetarium dome over rows of seats: the dome sways slowly as the projector turns the stars, its grid glows, the lights round its rim answer the spectrum and the figure lights a line on every beat.

Classic Studio

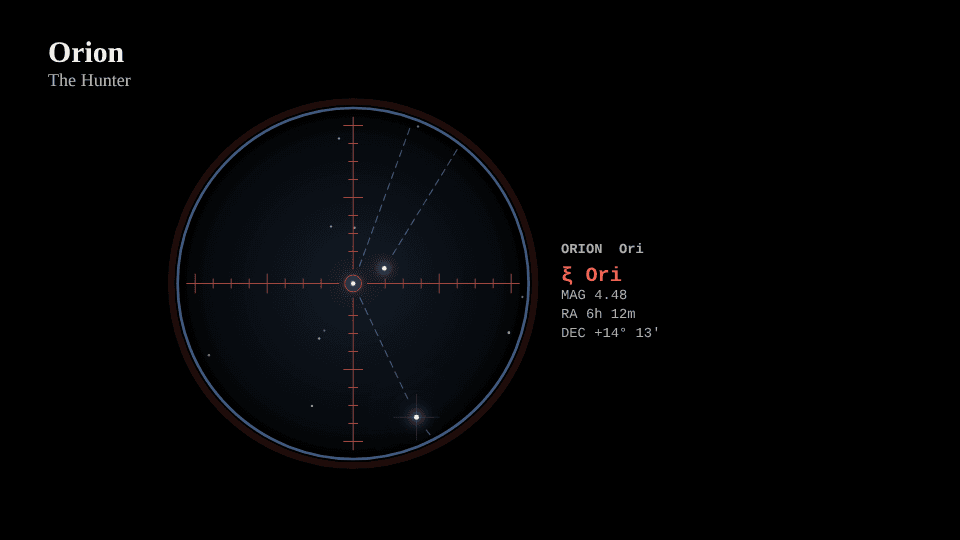

Telescope Eyepiece

Through the eyepiece: the view hops from star to star along the figure, one a bar, with the crosshairs on each and its name, brightness and place in the sky read out beside it. Bright stars throw diffraction spikes and the focus breathes with the bass.

Classic Studio

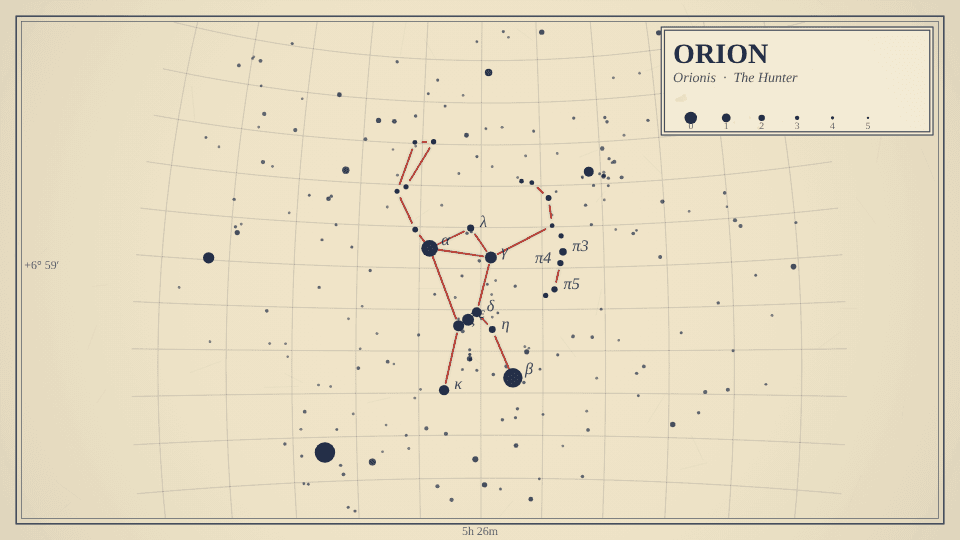

Star Chart

A printed star chart: the real stars inked by brightness on a grid of right ascension and declination, their Greek letters beside them, and a pen tracing the figure a line on every beat, the stars it reaches ringing as it goes.

Classic Studio

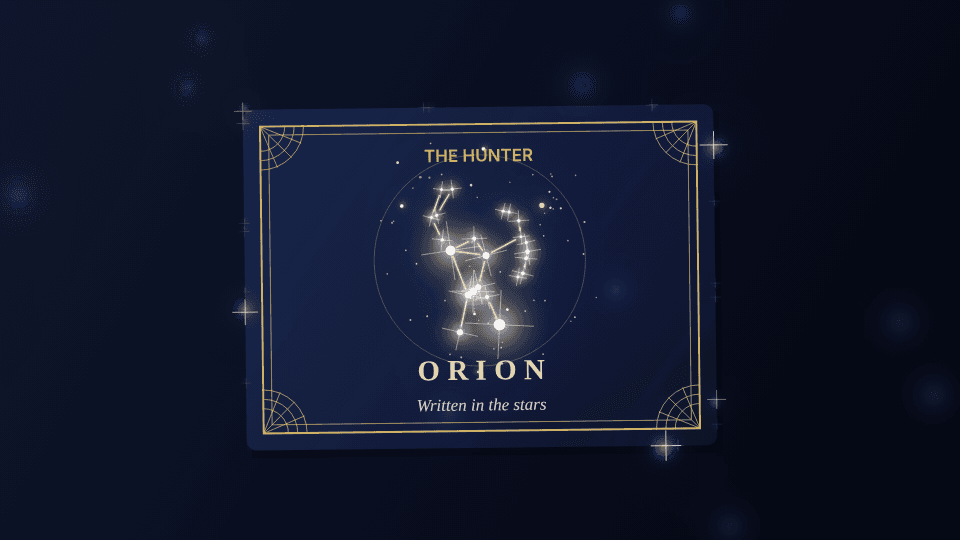

Star Sign Card

A card for a star sign or a night to remember: the figure in gold inside an art deco frame, its name in capitals and your own line under it, sparkles round the frame on the beat and a sheen of foil across it on the big moments.

Classic Studio

51 controls

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#9fd4ff	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#7a6bd6	Yes	No
BackgroundBackground used by the engine palette	Style	color	#03050f	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Spectrum rangeHow much of the 40 Hz to 14 kHz range the visual spans, from the bass up. Lower it to give the bass and mids more of the bars	Audio	range	1	Yes	No
Frequency scaleHow the bars are spread across the frequencies. Log spreads them by octave, mel by how pitch is heard, and linear by hertz, which gives most bars to the highs	Audio	select	log	No	No
Auto-levelLifts every part of the spectrum to its own recent range, so quiet highs move as much as loud bass. A note held for several seconds settles lower as it adapts. 0 shows the raw spectrum	Audio	range	0.8	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Frequency focusWhich part of the spectrum drives this visual; while no explicit audio source is set, the motion envelope follows this selection	Audio	select	full	No	No
Burst intensityGlow and trail swell on sharp hits; 0 keeps bursts off	Audio	range	0	Yes	No
Ambient bedProminence of the standing background layer behind the beat-born elements	Effects	range	1	Yes	No
Wake lengthHow far motion trails stretch behind beat-born travelers; 0 removes the wake	Effects	range	1	Yes	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
Motion directionRotate the animated visual pass to face this direction; the general background stays fixed	Motion	select	none	No	No
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Symmetry and tilingReshape the whole picture: mirror it, fold it into a kaleidoscope, or tile it (the plane groups p1, p2, p4m and p6m)	Shape and symmetry	select	none	No	No
Kaleidoscope foldsHow many mirrored copies go round the kaleidoscope	Shape and symmetry	range	6	Yes	No
Symmetry angleTurns the mirror line, or the kaleidoscope, in degrees	Shape and symmetry	range	0	Yes	Yes
Kaleidoscope spinHow fast the kaleidoscope turns, in turns per bar of the song (0.25 is once a phrase)	Shape and symmetry	range	0	Yes	Yes
Tile sizeEach tile's size as a share of the frame	Shape and symmetry	range	0.5	Yes	No
Tile gapThe gap between tiles, as a share of a tile; it shows the background colour	Shape and symmetry	range	0	Yes	No
WarpBend the whole picture: a twist, a bulge, waves or ripples that move once a bar, a polar unroll, or a fisheye lens	Shape and symmetry	select	none	No	No
Warp amountHow strong the warp is	Shape and symmetry	range	0.5	Yes	Yes
Warp centreWhere the warp is centred in the frame	Shape and symmetry	select	centre	No	No
ConstellationWhich constellation or star pattern the look shows: any of the 88 constellations, or a famous pattern such as the Big Dipper, Orion's Belt or the Pleiades. Its stars are the real ones, where they are in the sky	Constellation	select	orion	No	No
Line tracingHow the figure's lines appear: one line drawn on every beat or every bar, the whole figure held a while and then drawn again, or the figure always whole	Constellation	select	beat	No	No
Star namesShow the names of the figure's brightest stars (Betelgeuse, Rigel) beside them	Constellation	boolean	true	No	No
TwinkleHow much the stars twinkle. Each star answers its own part of the song by its colour: the red stars the bass, the white and gold the mids, the blue the highs	Sky	range	1	Yes	Yes
Background starsHow many of the real stars round the figure are shown, brightest first	Sky	range	1	Yes	No
Sky motionHow much the sky drifts and turns, the dome sways and the eyepiece moves from star to star	Sky	range	1	Yes	Yes
GreetingYour own line on the card, such as "Happy birthday, Leo" (the card says "Written in the stars" without one), and under the title in the other looks	Text	text		No	No
Loop lengthSeconds before the sky's drift, the twinkle and the haze repeat exactly, so a clip loops without a seam	Sky	range	8	Yes	No
Title and artistShow or hide the song title and artist this visualizer draws.	Text	select	auto	No	No
