Engine · v4.0.0

Arrangement Tunnel

Fly through your song's structure: its real sections, bars and energy as a tunnel, with what is coming visible ahead.

Open in Classic Open in Studio

All engines

6 modes

Launch modes

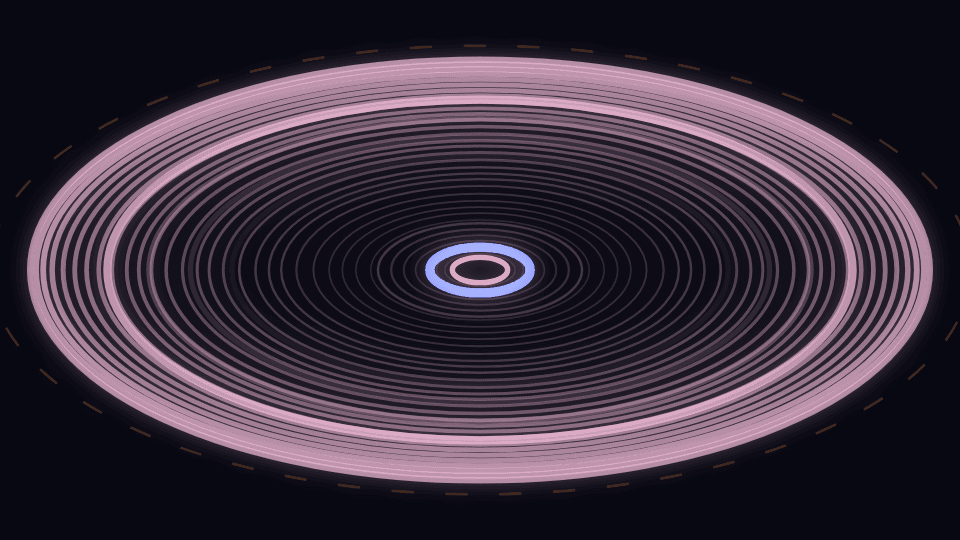

Section Rings

Fly through your song: each analysed section is a stretch of the tunnel wall in its energy's colour, every boundary a lit gate, and what is coming is visible ahead.

Classic Studio

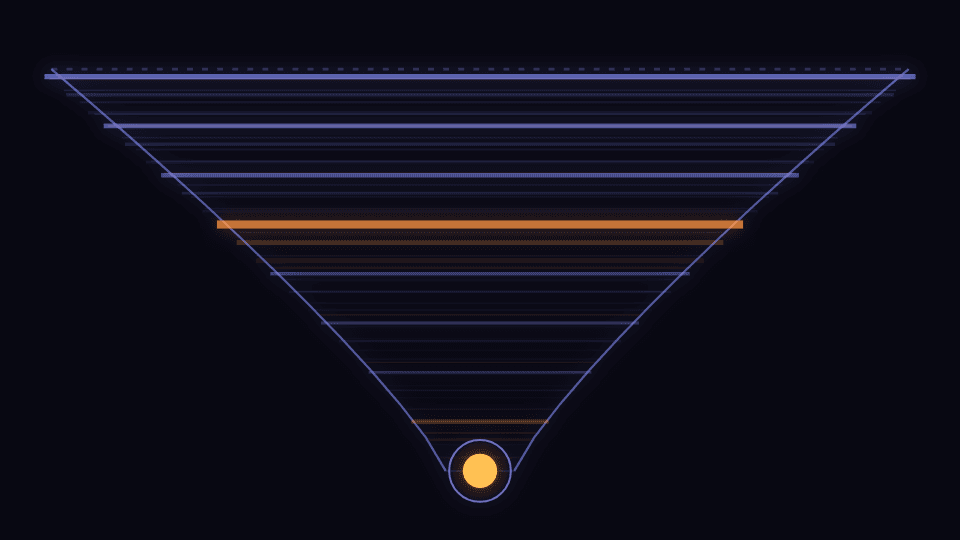

Beat Rungs

A runway down the song with a rung on every beat, heavier on the downbeats so bars are countable, each one reaching you exactly on its beat.

Classic Studio

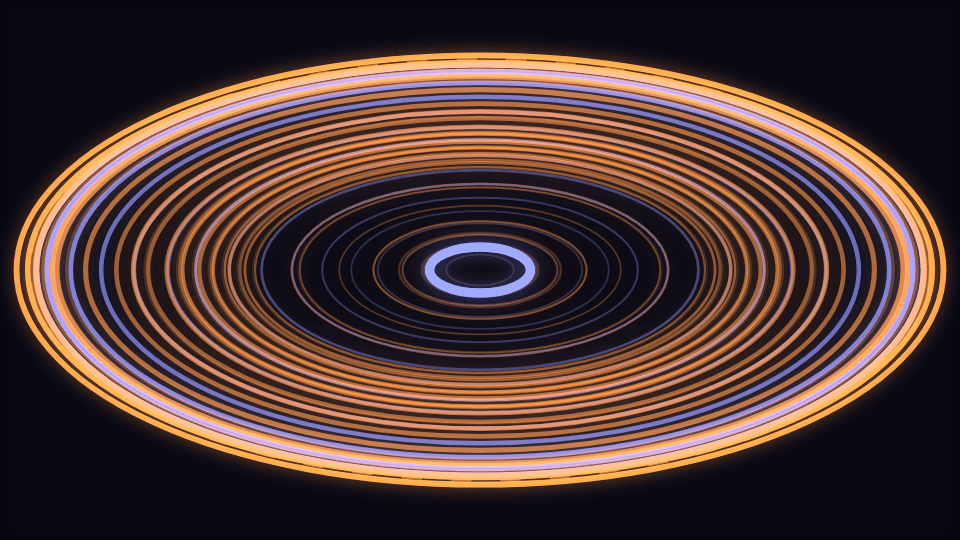

Energy Profile

A lit wire tunnel whose radius is the song's energy: it narrows through the quiet parts and opens out at the drop.

Classic Studio

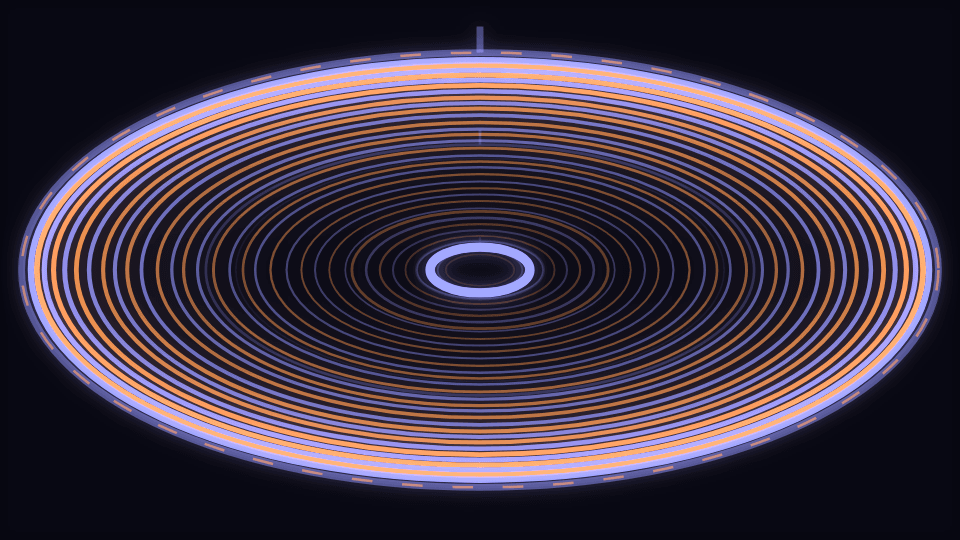

Marker Gates

Section boundaries become monumental labelled gates and every bar a light frame, all passing through the camera.

Classic Studio

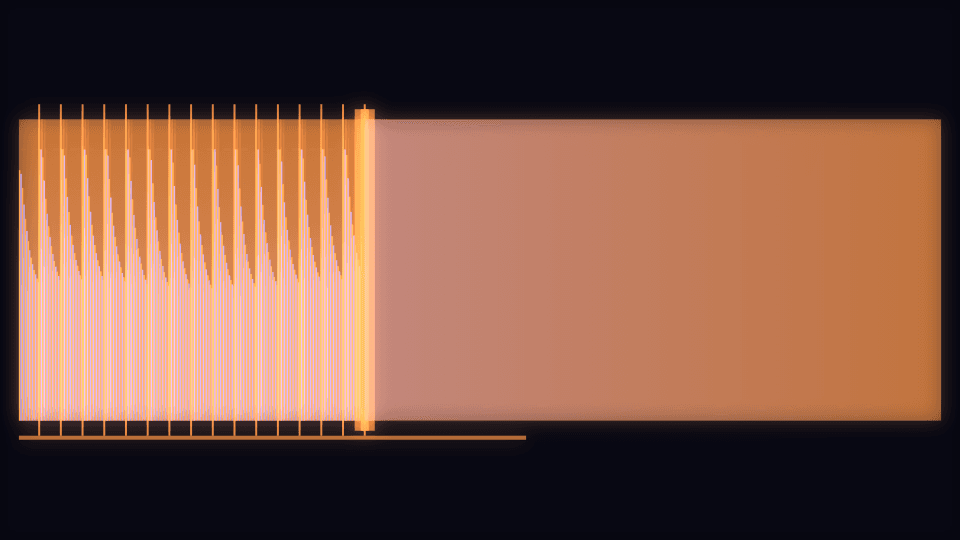

Look-Ahead Map

The song as a chart with a playhead: sections, the energy curve and every bar, past behind and what is coming ahead.

Classic Studio

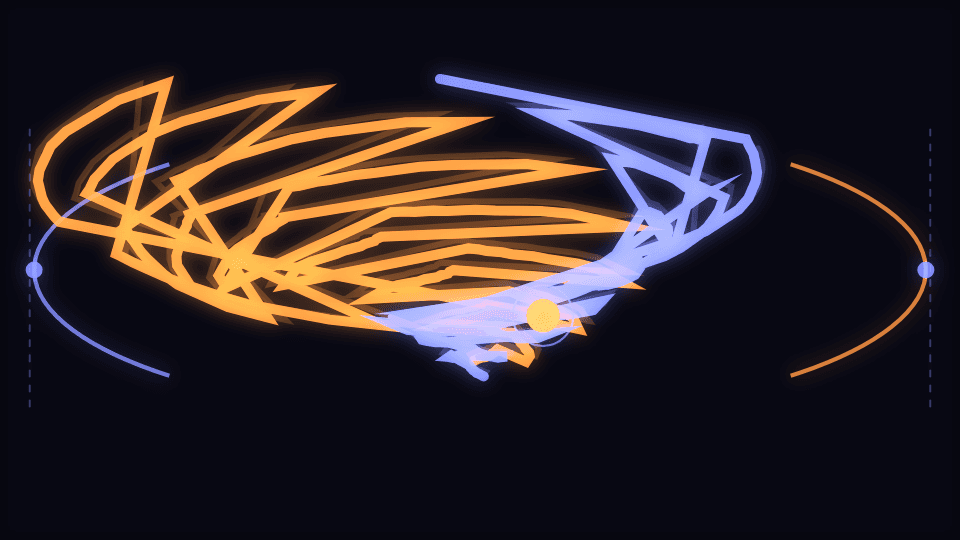

Structure Ribbon

One continuous ribbon down the tunnel whose twist turns back at every section change and widens with the energy.

Classic Studio

48 controls

Controls

Control	Group	Type	Default	Animation	Audio
Primary colorPrimary color used by the engine palette	Style	color	#fb923c	Yes	No
Secondary colorSecondary color used by the engine palette	Style	color	#818cf8	Yes	No
BackgroundBackground used by the engine palette	Style	color	#05050c	Yes	No
OpacityVisualizer opacity	Transform	range	1	Yes	No
Frame marginBreathing room kept clear at the frame edges. Audio-driven geometry is soft-limited to fit inside it; geometry scale deliberately is not	Transform	range	0.035	Yes	No
SensitivityBounded overall audio response	Audio	range	1	Yes	No
Primary audio sourcePrimary audio source	Audio	select	bass	No	No
Frequency focusWhich part of the spectrum drives this visual; while no explicit audio source is set, the motion envelope follows this selection	Audio	select	full	No	No
Burst intensityGlow and trail swell on sharp hits; 0 keeps bursts off	Audio	range	0	Yes	No
Ambient bedProminence of the standing background layer behind the beat-born elements	Effects	range	1	Yes	No
Wake lengthHow far motion trails stretch behind beat-born travelers; 0 removes the wake	Effects	range	1	Yes	No
Audio contributionMaximum contribution from the primary audio route	Audio	range	0.55	Yes	No
Audio dynamicsHow much of the band's movement reaches the visual. 1 = full dynamics; 0 holds it at a steady level for a calmer, more constant look	Audio	range	1	Yes	No
Audio attackEnvelope attack in milliseconds	Audio	range	45	Yes	No
Audio releaseEnvelope release in milliseconds	Audio	range	240	Yes	No
Geometry scaleGeometry scale	Geometry	range	1	Yes	Yes
ThicknessThickness	Geometry	range	2	Yes	Yes
Motion directionRotate the animated visual pass to face this direction; the general background stays fixed	Motion	select	none	No	No
SpeedTime-based motion; default major cycle is 6–12 seconds	Motion	range	0.1	Yes	Yes
Color modeDuo palette, primary→secondary gradient, or full rainbow sweep	Style	select	duo	No	No
GlowGlow	Effects	range	0.55	Yes	Yes
Global glowShared emissive strength across the frame	Effects	range	0.35	Yes	Yes
Pulse intensityBeat pulse scale for spawn, size, and shake	Effects	range	1	Yes	Yes
Beat responseHow hard every engine hits on each detected beat	Audio	range	1.2	Yes	Yes
Beat smoothingHow long each beat hit rings out before it settles	Audio	range	0.35	Yes	Yes
Beat attackSeconds for a hit to swell to full. 0 snaps instantly	Audio	range	0	Yes	Yes
Beat releaseSeconds for a hit to fade, overriding Beat smoothing. 0 follows it	Audio	range	0	Yes	Yes
Beat shakeFrame kick strength on each beat	Effects	range	0.6	Yes	Yes
Motion echoMotion echo	Effects	range	0	Yes	Yes
BlurBlur	Effects	range	0	Yes	Yes
Chromatic aberrationChromatic aberration	Effects	range	0	Yes	Yes
Beat sync allRoute beat energy into spawn, shake, pulse, speed, and scale	Audio	boolean	true	No	No
Symmetry and tilingReshape the whole picture: mirror it, fold it into a kaleidoscope, or tile it (the plane groups p1, p2, p4m and p6m)	Shape and symmetry	select	none	No	No
Kaleidoscope foldsHow many mirrored copies go round the kaleidoscope	Shape and symmetry	range	6	Yes	No
Symmetry angleTurns the mirror line, or the kaleidoscope, in degrees	Shape and symmetry	range	0	Yes	Yes
Kaleidoscope spinHow fast the kaleidoscope turns, in turns per bar of the song (0.25 is once a phrase)	Shape and symmetry	range	0	Yes	Yes
Tile sizeEach tile's size as a share of the frame	Shape and symmetry	range	0.5	Yes	No
Tile gapThe gap between tiles, as a share of a tile; it shows the background colour	Shape and symmetry	range	0	Yes	No
WarpBend the whole picture: a twist, a bulge, waves or ripples that move once a bar, a polar unroll, or a fisheye lens	Shape and symmetry	select	none	No	No
Warp amountHow strong the warp is	Shape and symmetry	range	0.5	Yes	Yes
Warp centreWhere the warp is centred in the frame	Shape and symmetry	select	centre	No	No
Seconds aheadHow many seconds of the song the tunnel shows ahead of the playhead. Fewer seconds fly faster; more show further into what is coming	Arrangement	range	14	Yes	Yes
Energy reliefHow much the song's energy widens and narrows the tunnel, so a drop ahead opens it out	Arrangement	range	0.5	Yes	Yes
Look aheadShare of the picture given to what has not played yet: a larger playhead ring, or more of the chart	Arrangement	range	0.4	Yes	Yes
Section labelsShow each section's letter and measured energy at its gate, and on the chart	Arrangement	boolean	true	No	No
Section coloursHow sections are coloured by their energy: calm sections cool, a build warming, the drop hottest. Your colours uses Primary for the hottest and Secondary for the calmest	Arrangement	select	theme	No	No
Gate styleHow each section boundary looks: a lit ring, a framed portal, or a veil of the new section's colour	Arrangement	select	ring	No	No
VersionPlay an earlier version of this visualizer. Current look follows every future update.	Version	select	current	No	No
